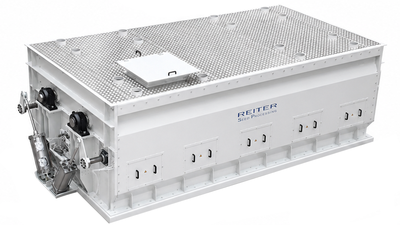

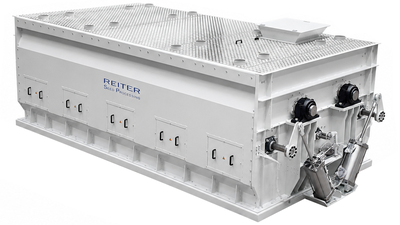

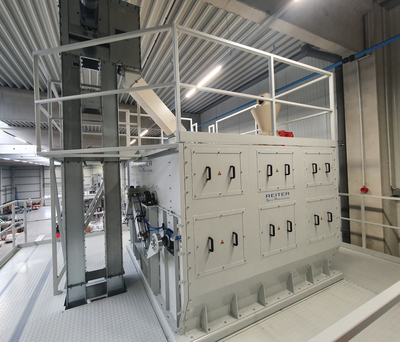

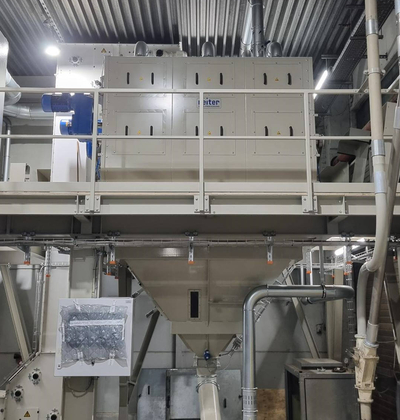

Gentle and homogeneous blending
Our horizontal batch blenders type RDM are used for gentle and uniform blending of dry, grainy and free-flowing products. They are particularly suitable for seed, grass seed, cereals, pulses, bird seed and other agricultural products.

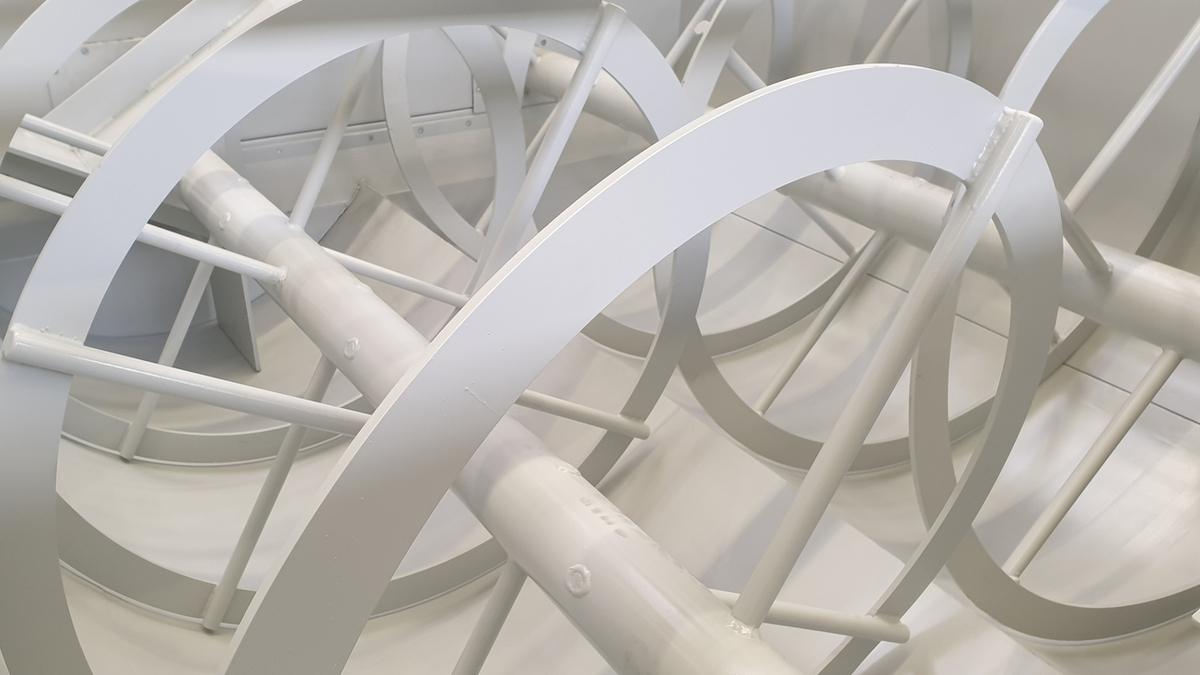

Two counter-rotating shafts ensure uniform blending of two or more individual components. This is also guaranteed when the fill level is only 10% of the actual volume. Thanks to short blending times and a special geometry, all products are handled gently. The RDM series consistently delivers high-quality results, regardless of products or blend recipes.
Fast and residue-free discharge
A key feature is the residue-free and rapid discharge. Two pneumatically actuated bottom flaps covering the entire blender chamber discharge the entire content residue-free and instantly into a buffer bin below.
The rapid discharge is not only efficient; it also prevents a batch from segregating again during discharge.
Robust design for industrial use
The blenders are designed as robust machines for industrial use. The heavy-duty steel blending chamber, double shaft sealing and completely enclosed housing enable reliable and clean operation. The solid construction ensures low wear and low maintenance requirements.
Easy cleaning and good accessibility
Accessibility is essential for product changes, maintenance and inspection. The RDM blenders are designed so that cleaning and inspection can be carried out easily and efficiently.
Sizes and capacities
- RDM 4: 400 - 4.000 l volume
- RDM 6: 600 - 6.000 l volume
- RDM 8: 800 - 8.000 l volume
- RDM 15: 1.500 - 15.000 l volume
- two blending shafts with counter-rotating spirals
- separate drive for each blending shaft via geared motor
- double shaft sealing to the outer housing
- two-part, pneumatically operated bottom flap across the entire blender area
- frictional connection for flexible adjustment of the bottom flap position
- heavy-duty steel blending chamber
- completely enclosed, dust-proof housing
- aspiration spouts
- drive powers range from 2 x 7,5 kW (RDM 4) bis 2 x 30,0 kW (RDM 15)
Various options are available to adapt the blender to different products and processes:
- food-safe execution with stainless steel blending chamber
- support frame / platform, stationary or mobile
- feed hopper and discharge hopper
- conveying equipment for feeding and discharge, such as belt conveyors, bucket elevators or continuous bucket conveyors
