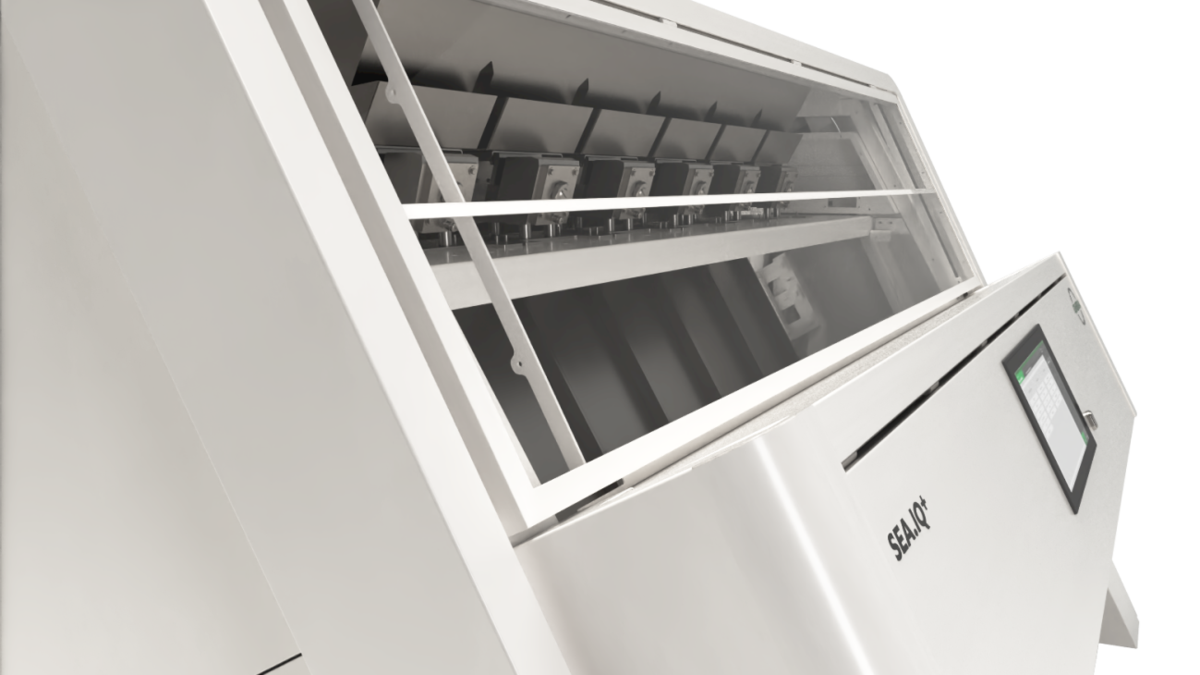

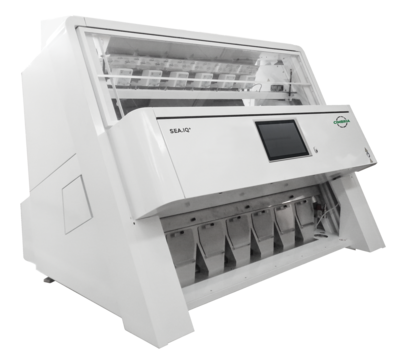

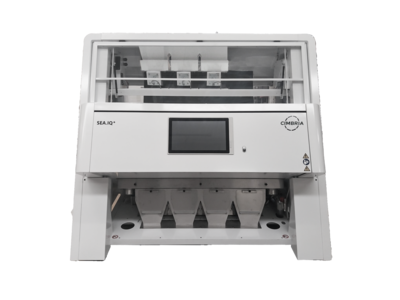

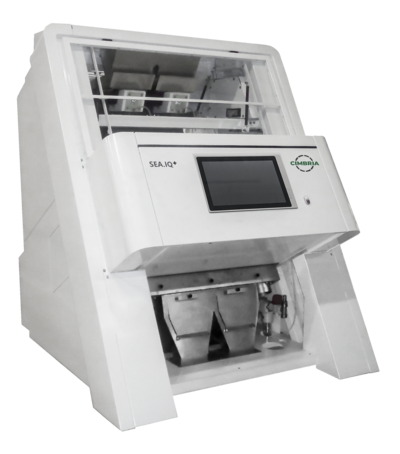

The CIMBRIA SEA.IQ PLUS

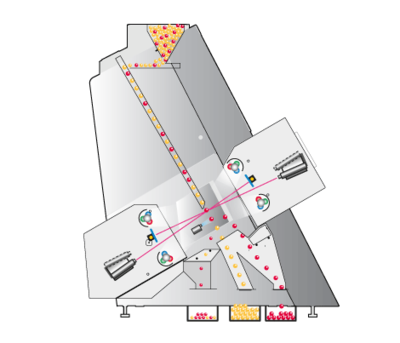

The SEA.IQ PLUS is particularly suitable for applications where highest sorting accuracy, reproducible results and maximum product quality are essential. It detects even finest differences in color, size, shape and surface density, which are difficult or impossible to separate reliably with other optical sorting systems.
Key features:
- available with 1 up to 6 sorting chutes
- 2 high resolution full-color RGB cameras with integrated NIR per chute
- bi-chromatic SWIR sensors and / or UV as an option
- up to 4 sections for simultaneous resorting
- BRAIN: AI powered recipe creation
- detection of up to 16 million colors plus infrared
- optical resolution down to 0.08 mm
- up to 25,000 scans per second
- control of up to 14 defect families
- integrated shape and size control
- ejectors with 5.0 mm or 3.3 mm pitch
- active LED illumination and background lighting
- integrated cooling system for operation without an external cooling unit
Re-sort, re-resort and reverse sort
For demanding applications, the SEA.IQ PLUS can be configured with up to 4 different sorting logics for simultaneous resorting. Depending on the product and sorting target, simple re-sorting, double re-sorting or reverse sorting is possible. This enables flexible adaptation to product, defect pattern and required quality target.
- highest purities
- improved yield with difficult products
- targeted re-sorting of critical fractions
- flexible adaptation to different products
- reproducible quality for recurring batches
BRAIN: AI-assisted recipe development for optical sorting
With Brain, you can create the most complex recipes in a flash. So, you can achieve your highest sorting performance on SEA.IQ PLUS.
In optical sorting, the recipe has a major influence on sorting performance, yield and product quality. Especially with complex products, manual recipe development can require considerable experience and time. BRAIN uses artificial intelligence to support this process and helps operators reach precise sorting settings more efficiently. This makes the optical sorter not only more powerful, but also easier to use – especially when products change frequently or quality requirements are high.
- faster recipe development
- improved detection of complex defects
- reduced setup time
- more reproducible sorting results
- support for new products
- increased process reliability for operators
- better balance between purity and yield
Test before invest
Every product behaves differently. Trials are therefore an essential step in selecting and configuring the right optical sorter. In our test lab in GER-Landshut, we offer product trials and live demonstrations with the SEA.IQ PLUS. Real product samples can be tested, sorting targets evaluated and initial recipes developed.
- reliable assessment of sortability
- realistic evaluation of purity and yield
- selection of the suitable sorter configuration
- increased investment security
- practical basis for plant design and integration
Comprehensive Service - personalized support for operators
Optical sorters are high-tech machines. That’s why it’s so important to have a reliable partner who not only delivers but also understands the technology, provides ongoing support, and assists with operations.
- free of charge trials in our test lab
- commissioning and operator training
- recipe creation and optimization
- phone and remote support
- maintenance and spare parts
- on-site technical support
