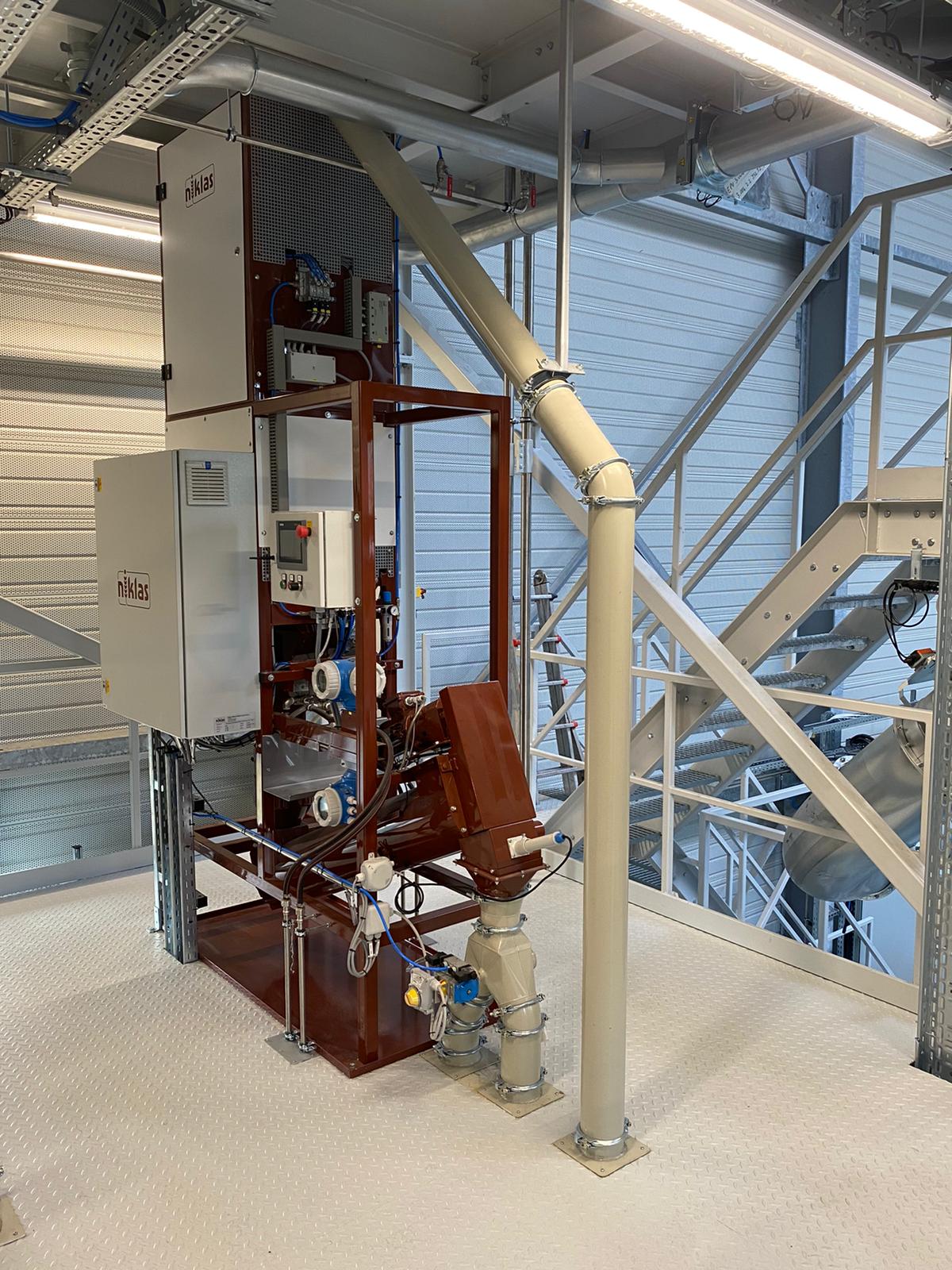

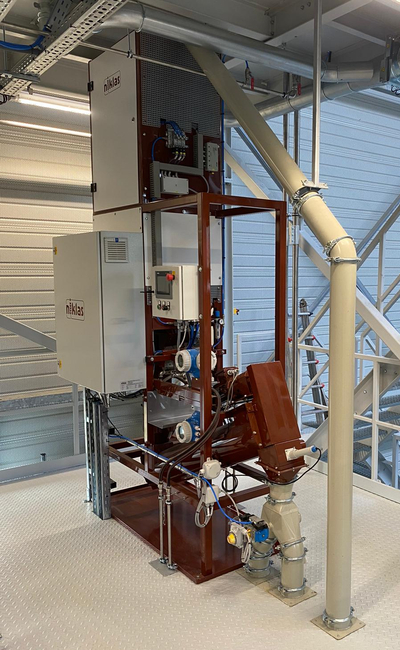

Niklas Continuous Liquid Seed Treater type W.N.

Continuous Liquid Seed Treaters

Economical and precise treatment

The Niklas continuous liquid seed treaters are used for high-quality seed treatment. They are particularly suitable for standardized treatment processes of cereals, pulses, corn and other seed types.

Precise dosing of seed and chemical liquid

For a uniform treatment result, the exact ratio between seed quantity and chemical liquid is essential. Continuous seed treaters therefore use electronic dosing systems for both seed and liquid products.

Depending on the configuration, seed dosing is carried out via weighing technology, rotary valve or Seed-Flow-Controller. Liquids are precisely dosed using special pumps and electronic flow measurement.

This enables uniform seed coating and stable process control.

Uniform application and gentle post-mixing

The treatment product is finely distributed into the product flow. In larger machine versions, the primary distribution is carried out via a spray disc without conventional nozzles. A special nylon brush screw then ensures gentle and effective post-mixing.

Results:

homogeneous seed coating
very good seed-to-seed distribution
gentle handling of seed, including corn and pulses
stable treatment quality in continuous operation
economical processing of larger product quantities

Series W.N. 6 / W.N. 8 / W.N. 14

Capacities

W.N. 6: 1 - 6 t/h
W.N. 8: 1 - 8 t/h
W.N. 14: 2 - 14 t/h

patented product dosing technology
seed metering roller for volumetric seed dosing
volumetric scoop wheel technology for exact dosing of liquid products
large-volume primary distribution with spraying disc (without nozzles) for fine distribution of liquid products
nylon brush auger for a gentle and effective mixture (W.N. 6 with stainless steel auger)
contactor and relay control for automatic operation
capacity continuously adjustable (manual)
after calibration a change of capacity effects an automatic adjustment of seed and chemical liquids

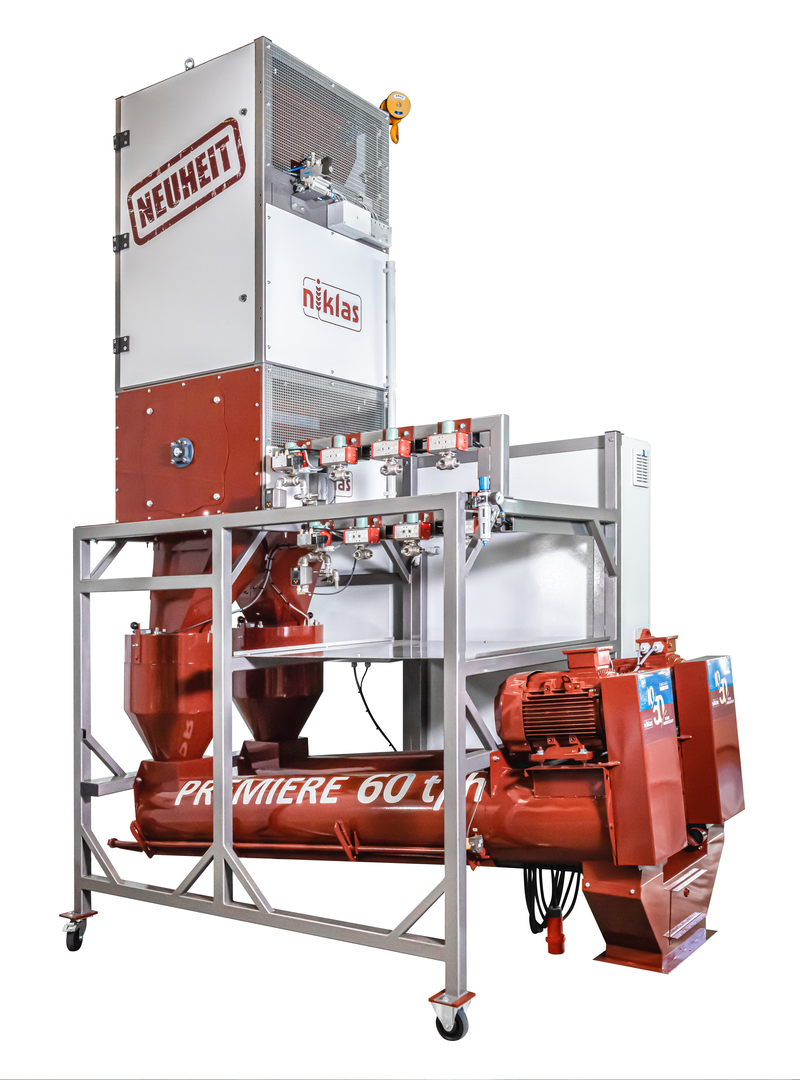

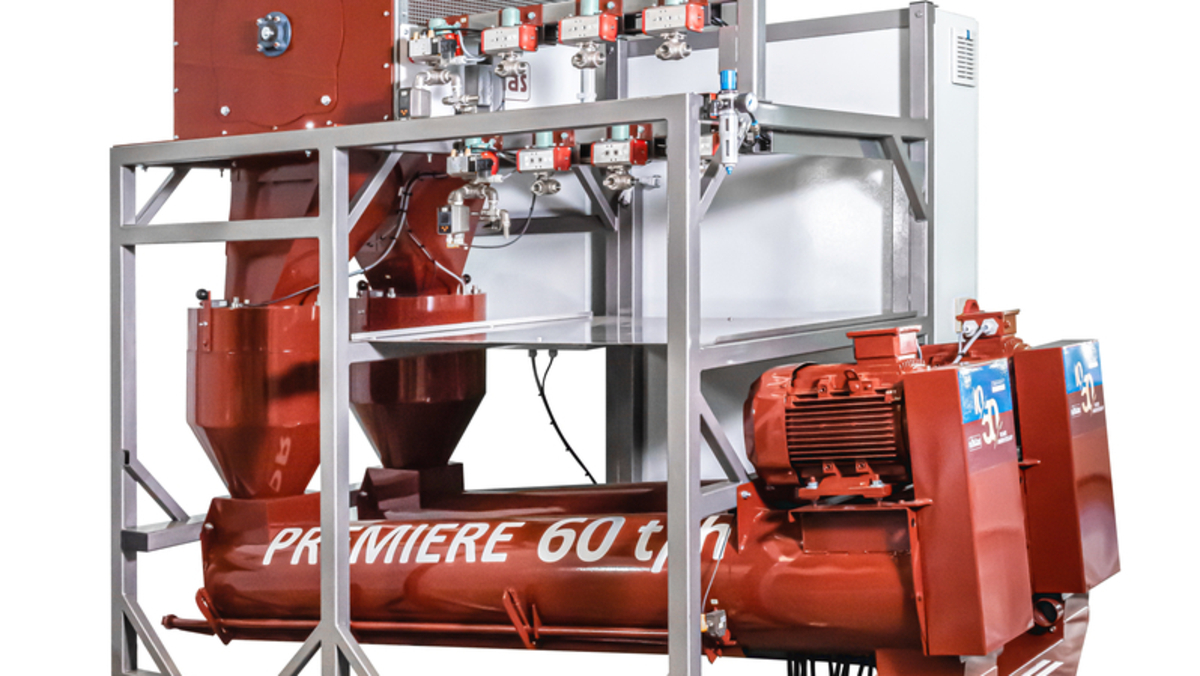

Series W.N. 15 sfc / W.N. 30 sfc / W.N. 60 sfc

Capacities

W.N. 15 sfc: 5 - 15 t/h
W.N. 30 sfc: 10 - 30 t/h
W.N. 60 sfc: 20 - 60 t/h

gravimetric seed dosing with seed flow controler
special supply pump and electronic flow measurement for exact dosing of liquid products
large-volume primary distribution with spraying disc (without nozzles) for fine distribution of liquid products
nylon brush auger for a gentle and effective mixture
PLC control for automatic operation
adaptive control unit for an automatic adjustment of seed and chemical liquid
electronic determination and inspection of preprogrammed seed and chemical liquid quantities
visualisation by touch panel display
