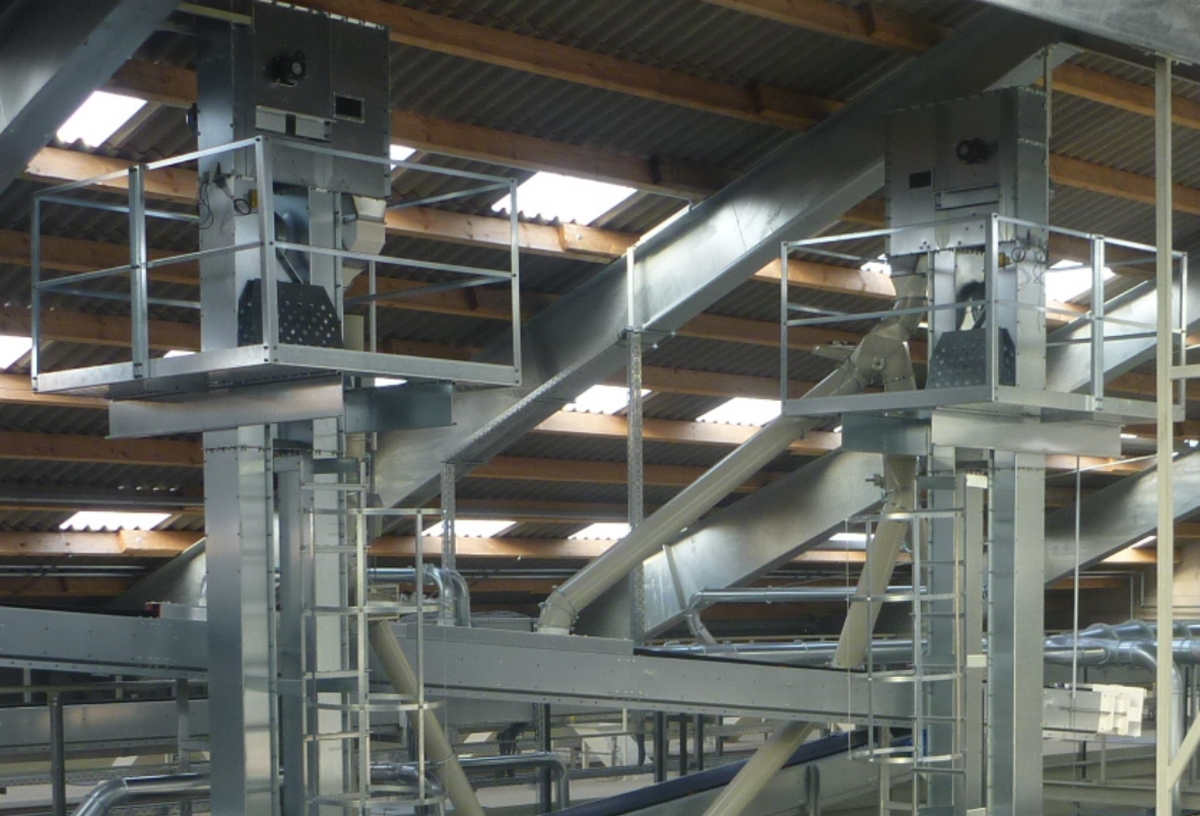

Efficient and gentle vertical conveying
Depending on the product and process requirements, we supply individually configured elevators – from cost-efficient standard solutions to particularly gentle designs for sensitive products.
Especially in seed processing, bucket elevators are configured for gentle and residue-free product handling to minimize mechanical stress, broken kernels and cross-contamination.
- reduced belt speeds
- plastic buckets
- distance washers to reduce product residues
- pneumatic foot cleaning systems
Basic design
- foot section with inlet and tensioning device
- head section with outlet and gear motor
- conveyor belts in various qualities
- steel or plastic buckets as required
- backstop
- rotation guard
- aspiration spout
- material: galvanized sheet metal
Options and configurations
- distance washers to reduce product residues
- pneumatic foot cleaning systems
- oil and fat resistant belts
- reduced belt speeds
- wear protection liners
- bearing temperature monitoring
- misalignment sensors
- painted or food grade designs
Data Sheets
- Bucket elevator EC Datasheet (EN)
- Bucket Elevator EC drive belt Datasheet (EN)
- Bucket elevator ED-EE Datasheet (EN)
- Bucket elevator EE Datasheet (EN)
- Bucket Elevator EE drive belt Datasheet (EN)
- Bucket elevator EF Datasheet (EN)
- Bucket elevator EH Datasheet (EN)
- Bucket elevator Support system Datasheet (EN)
