Gentle conveying for complex conveying routes
Continuous bucket conveyors are particularly suitable for applications requiring high capacities, gentle product handling and residue-minimized conveying. They are used in seed processing, agricultural applications, food production and industrial bulk material processes.
The product is conveyed continuously with low mechanical stress. This makes continuous bucket conveyors particularly suitable for sensitive products or materials that are prone to segregation.
Combined horizontal and vertical transport
Continuous bucket conveyors combine horizontal and vertical transport sections within one conveyor. The modular design allows complex routes with multiple changes of direction to be implemented in a space-saving way.
By using different sizes and different speeds, a wide range of hourly capacities can be achieved.
Types and capacities
- WB 130: up to 4 m³/h
- WB 250: up to 12 m³/h
- WB 300. up to 22 m³/h
- WB 370: up to 45 m³/h
Basic design

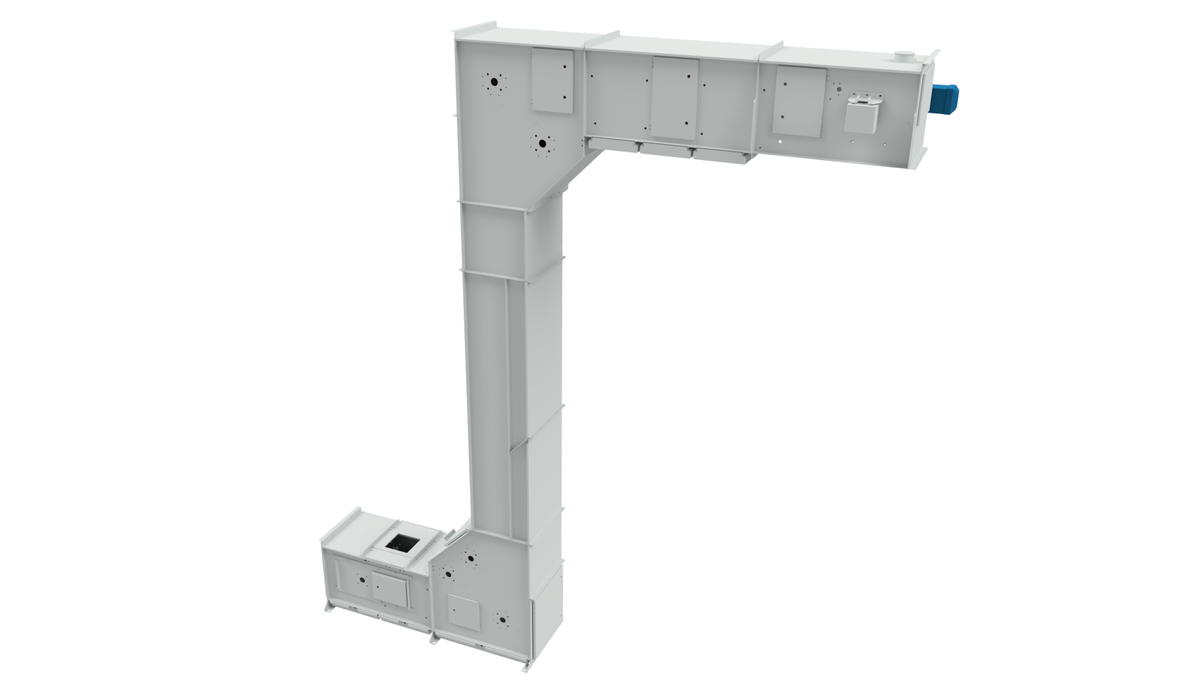

- horizontal and vertical conveying in “C” or “Z” design
- foot section with tensioning station and variable number of inlets
- head section with drive and outlet
- rubber block chain with plastic buckets
- modular horizontal and vertical ducts
- drawers for cleaning in foot and head section
- aspiration spouts
- reverse brake
- rotation guard
- drive by gear motor
- mild steel design, painted
