Universal brushing machines type RBM
The machines can be adapted to the product, target quality and process requirements. They are suitable for brushing, de-awning, de-husking and polishing as well as for special applications such as leaf-stem separation in herb processing. This makes them suitable for both seed processing and food processing applications.
Central brush adjustment as standard
Our brushing machines are equipped with central brush adjustment as standard. This simplifies machine setting and supports consistent processing quality.
Fast cleaning and maintenance
The machines are designed for easy access and efficient cleaning. On the RBM 800, quick-release clamps on the mantle allow particularly fast cleaning and maintenance within a few minutes. This reduces downtime and facilitates product changes, especially where residue reduction and plant hygiene are important.
Organic version for reduction of common bunt
Both machines can be supplied in organic version to reduce common bunt. In this process, adhering spores, for example common bunt spores on wheat, are mechanically brushed off the kernel surface and removed from the product stream via adapted aspiration.
This can be a major advantage in organic seed processing, where affected batches may under certain conditions be further processed and preserved. Depending on the product and machine setting, practical reduction rates of up to 99% can be achieved.

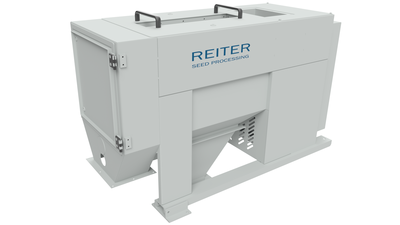

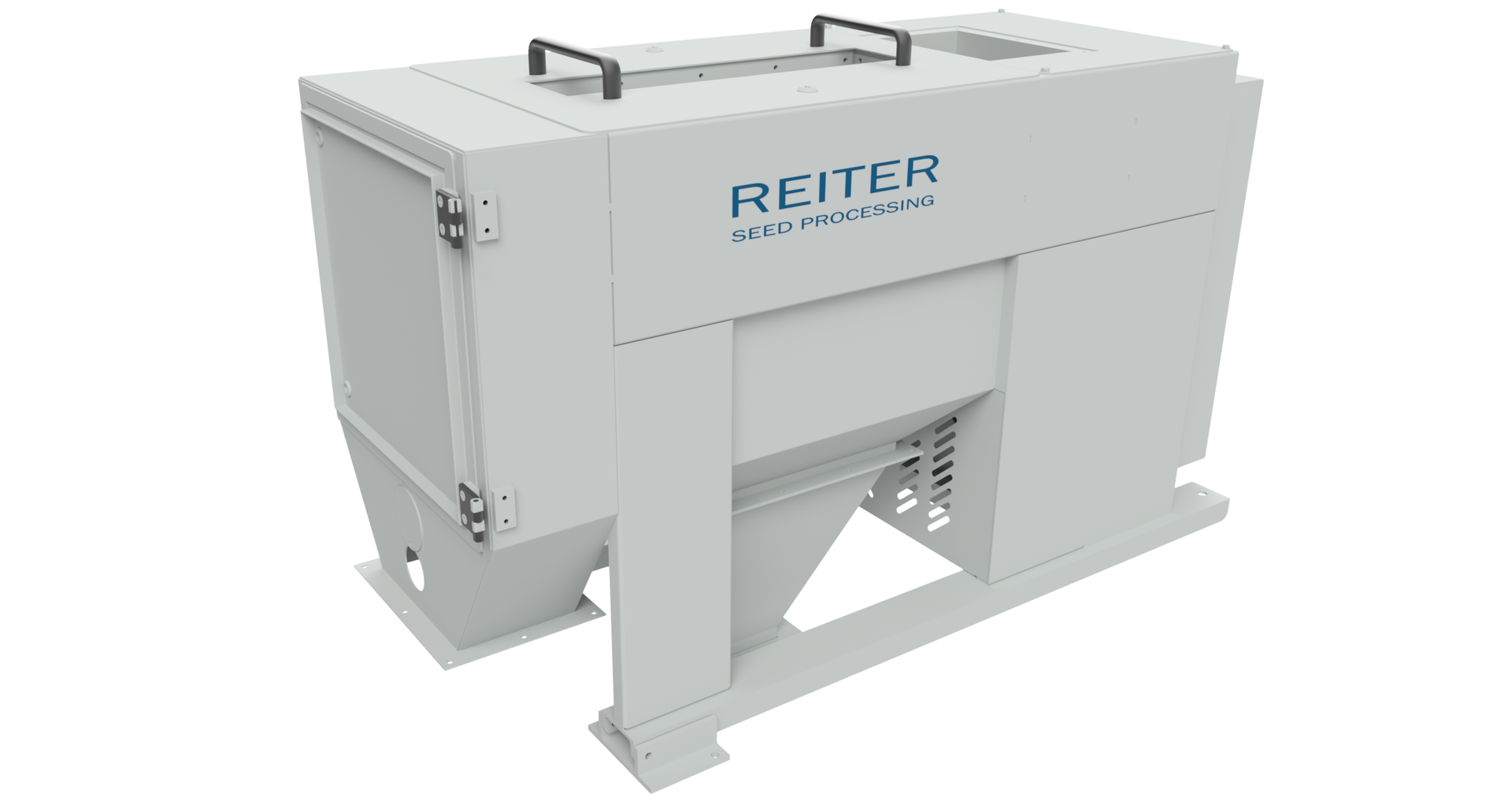

RBM 400 and RBM 800

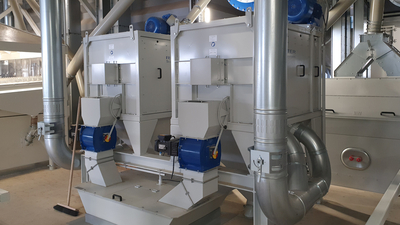

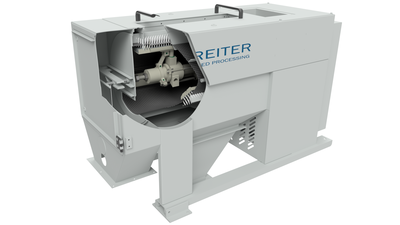

Our brushing machines are available in two sizes. The RBM 400 can be operated as a stand-alone machine or integrated into a production line with a small to medium hourly capacity. The larger RBM 800 is designed for higher hourly capacities. Thanks to their modular design, they can be set up individually or combinated.
Data:
- capacity: up to approx. 600 kg/h in polishing of wheat
- drive: 4,0 / 5,5 kW
- aspiration air requirement: 500 m³/h
- dimensions (L x W x H): 1.720 x 610 x 950 mm
- weight (empty): 500 kg
Basic design:
- product inlet from the top
- continuous product feeding via inlet screw
- exchangeable mantle covered with wire mesh or perforated plate

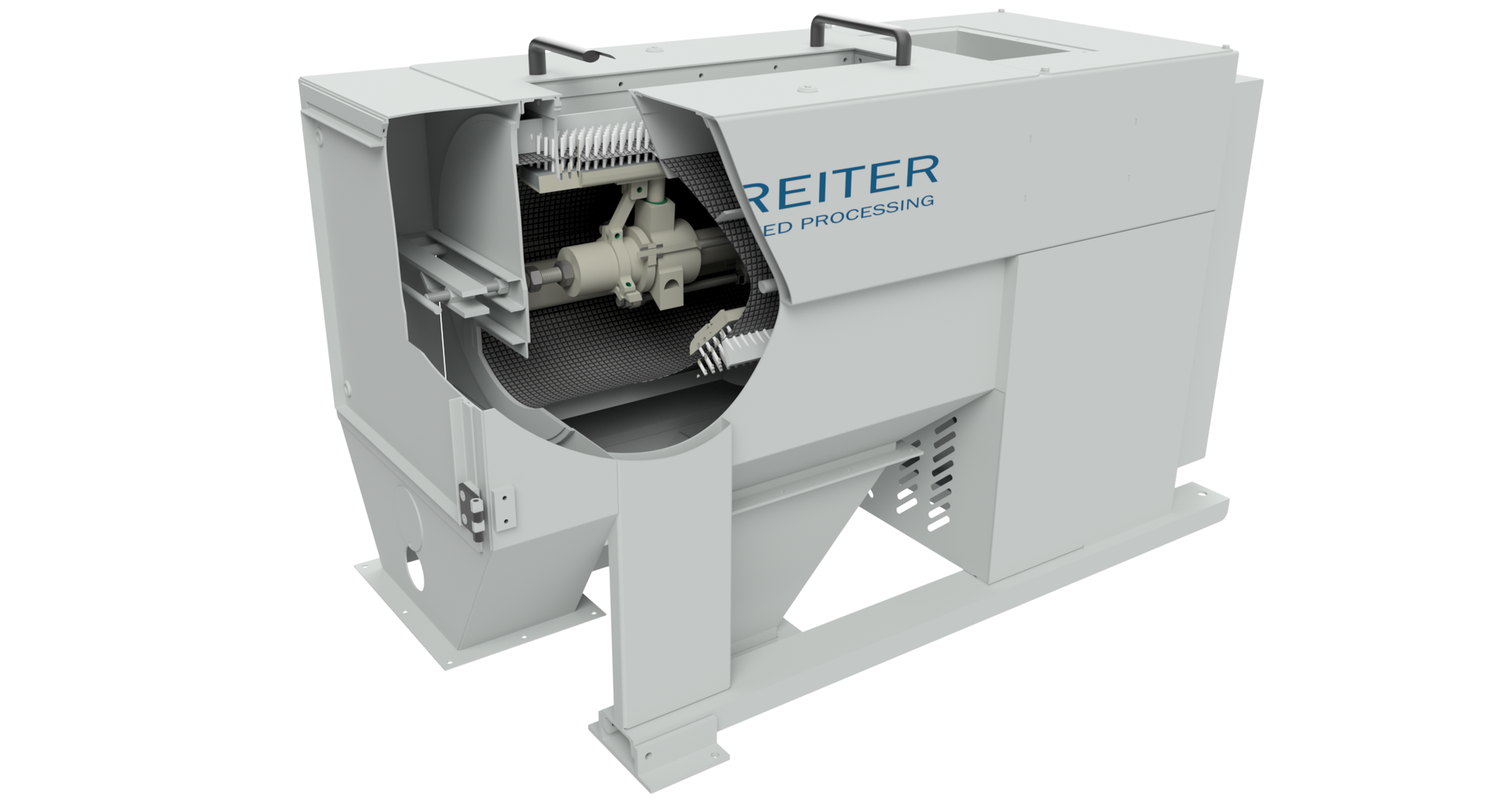

- brushing shaft with 6 brushes
- central outlet hopper
- adjustable end outlet for regulation of processing time
- steel machine housing
- V-belt drive
Options:
- organic version for common bunt
- variable drive with frequency control
- steel beaters instead of brushes
- food approved design

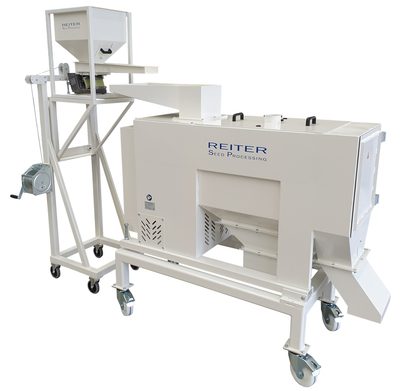

- mobile support frame

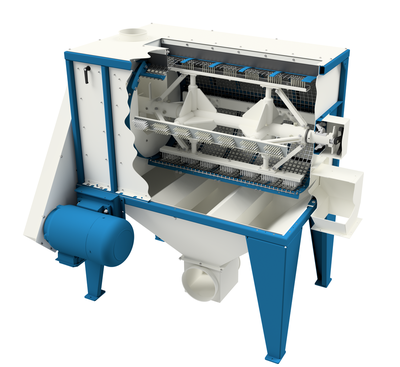

Data:
- capacity: up to 1,5 t/h in ryegrass
- capacity: up to 8 t/h in polishing of wheat
- drive: 5,5 / 11,0 / 18,5 kW
- aspiration air requirement: 1.400 m³/h
- dimensions (L x W x H): 2.230 x 1.200 x 2.760 mm
- weight (empty): 1.350 kg
Basic design:
- product inlet from the top
- continuous product feeding via inlet screw

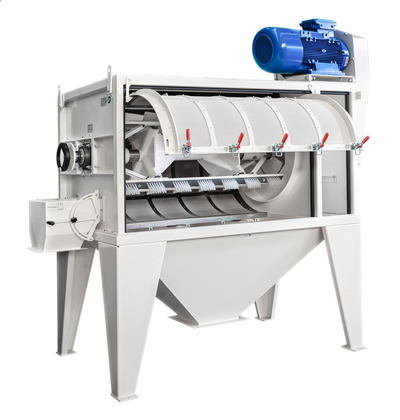

- three-parted mantle covered with wire mesh or perforated plate

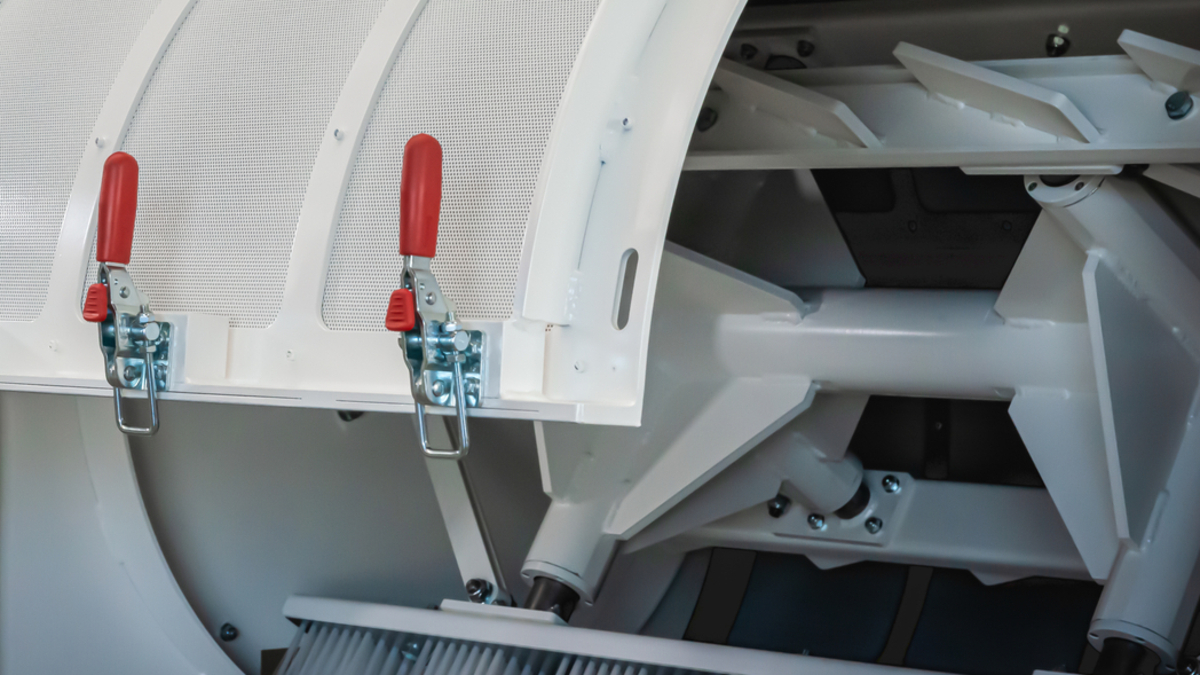

- mantle with quick-release clamps for easy maintenance
- brushing shaft with 4 brushes
- central brush adjustment via hand wheel
- central outlet hopper
- adjustable end outlet for regulation of processing time
- steel machine housing
- V-belt drive
Options:
- organic version for common bunt
- variable drive with frequency control
- steel beaters instead of brushes
- food approved design

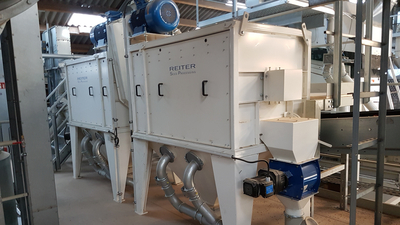

- modular arrangement (1 over 1 or 2 over 2)
